- Panels are available in two standard widths.
-
- 89″ wide panels can be ordered in 4 standard heights (3ft, 4ft, 5ft and 6ft high).
- 63 1/2″ wide panels can be ordered in 5 standard heights (7ft, 8ft, 9ft, 10ft and 12ft high).
- Matching single, double, sliding cantilever and bi-fold gates can be added to finish your job.
- Standard Colour – High Gloss Black (other colours are available by request).

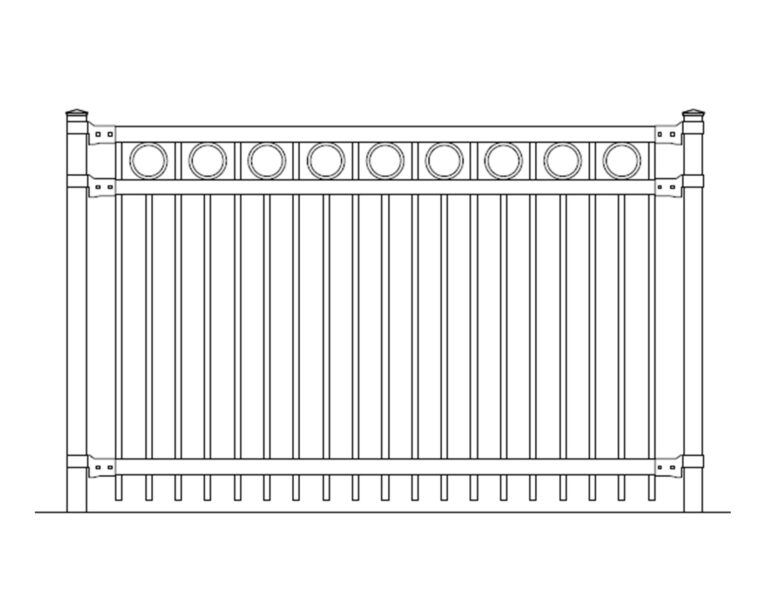

Longhorn III 6539
Commercial 3 Rail with Flat Top Design and Rings
From our Longhorn Commercial III Series, this style adds a full set of 5″ rings to style 6538. A very polished, finished look.
Height
89″ Panels
3ft (36″)
4ft (48″)
5ft (60″)
6ft (72″)
63 1/2″ Panels
7ft (84″)
8ft (96″)
9ft (108″)
10ft (120″)
12ft (144″)
Weight
89″x36″ – 115 lbs
89″x48″ – 121 lbs
89″x60″ – 137 lbs
89″x72″ – 154 lbs
63 1/2″x84″ – 133 lbs
63 1/2″x96″ – 146 lbs
63 1/2″x108″ – 159 lbs
63 1/2″x120″ – 172 lbs
63 1/2″x144″ – 198 lbs
Specs
Pickets 1″ x 1″
Rails 1 1/2″ x 2 1/2″
Posts (3″x3″) setting centre to centre for:
- 3′ to 6′ height – 94″
- 7′ height and up – 68 3/4″
POSTS SOLD SEPARATELY
Files
- DWG120-Call for drawing file
- DWG72-Call for drawing file
