- Panels are available in two standard widths.
- 93″ wide panels can be ordered in 4 standard heights (3ft, 4ft, 5ft and 6ft high).
- 68 1/2″ wide panels can be ordered in 5 standard heights (7ft, 8ft, 9ft, 10ft and 12ft high).
- Matching single, double, sliding cantilever and bi-fold gates can be added to finish your job.
- Standard Colour – High Gloss Black (other colours are available by request).

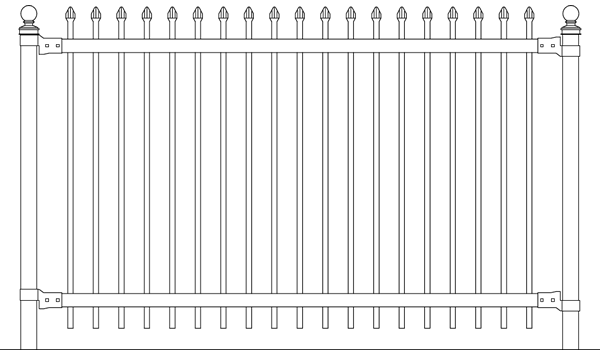

Longhorn III 6520
Commercial 2 Rail with Pickets
From our Longhorn Commercial III Series, this best-selling 2 rail design has pickets extending above the top rail. Pickets can be pinched (as shown) for a classic arrow top look, or flat top with a plastic insert.
Height
93″ Panels
3ft (36″)
4ft (48″)
5ft (60″)
6ft (72″)
68 1/2″ Panels
7ft (84″)
8ft (96″)
9ft (108″)
10ft (120″)
12ft (144″)
Weight
93″x36″ – 80 lbs
93″x48″ – 97 lbs
93″x60″ – 114 lbs
93″x72″ – 130 lbs
68 1/2″x84″ – 114 lbs
68 1/2″x96″ – 127 lbs
68 1/2″x108″ – 140 lbs
68 1/2″x120″ – 153 lbs
68 1/2″x144″ – 180 lbs
Specs
Pickets 1″ x 1″
Rails 1 1/2″ x 2 1/2″
Posts (3″x3″) setting centre to centre for:
- 3′ to 6′ height – 98 1/4″
- 7′ height and up – 74 3/4″
POSTS SOLD SEPARATELY
