- Panels are available in two standard widths.
- 90 3/4″ wide panels can be ordered in 4 standard heights (3ft, 4ft, 5ft and 6ft high).
- 69 1/2″ wide panels can be ordered in 5 standard heights (7ft, 8ft, 9ft, 10ft and 12ft high).
- Matching single, double, sliding cantilever and bi-fold gates can be added to finish your job.
- Standard Colour – High Gloss Black (other colours are available by request).

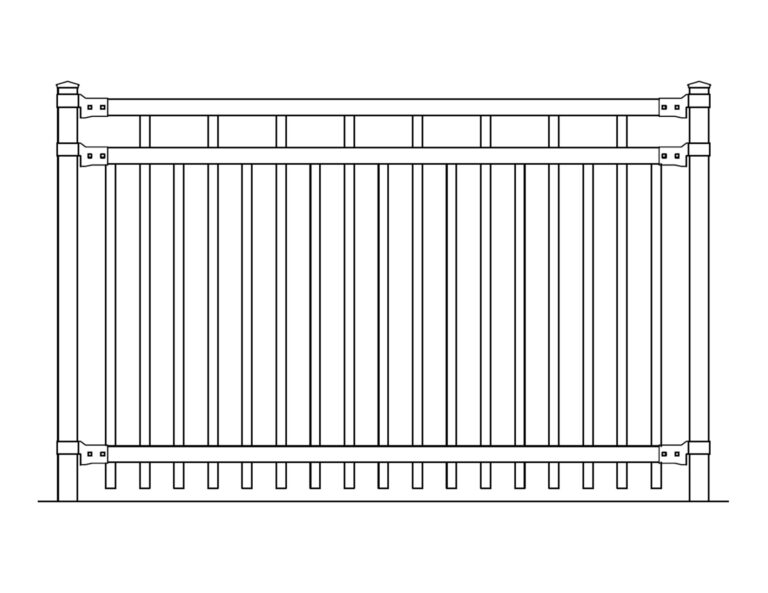

Longhorn II 6704
Industrial 3 Rail with Flat Top Design
From our Longhorn Industrial II Series, this 3 rail design features alternating pickets between the top 2 rails for a more spacious visual look.
Height
90 3/4″ Panels
3ft (36″)
4ft (48″)
5ft (60″)
6ft (72″)
69 1/2″ Panels
7ft (84″)
8ft (96″)
9ft (108″)
10ft (120″)
12ft (144″)
Weight
90 3/4″x36″ – 97 lbs
90 3/4″x48″ – 114 lbs
90 3/4″x60″ – 129 lbs
90 3/4″x72″ – 146 lbs
69 1/2″x84″ – 127 lbs
69 1/2″x96″ – 140 lbs
69 1/2″x108″ – 153 lbs
69 1/2″x120″ – 165 lbs
69 1/2″x144″ – 190 lbs
Specs
Pickets 3/4″ x 1 1/2″
Rails 1 1/2″ x 2 1/2″
Posts (3″x3″) setting centre to centre for:
- 3′ to 6′ height – 97 1/4″
- 7′ height and up – 76″
POSTS SOLD SEPARATELY
Files
- DWG-Call for drawing file
