- Panels are available in two standard widths.
- 96″ wide panels can be ordered in 4 standard heights (3ft, 4ft, 5ft and 6ft high).
- 69 1/2″ wide panels can be ordered in 5 standard heights (7ft, 8ft, 9ft, 10ft and 12ft high).
- Matching single, double, sliding cantilever and bi-fold gates can be added to finish your job.
- Standard Colour – High Gloss Black (other colours are available by request).

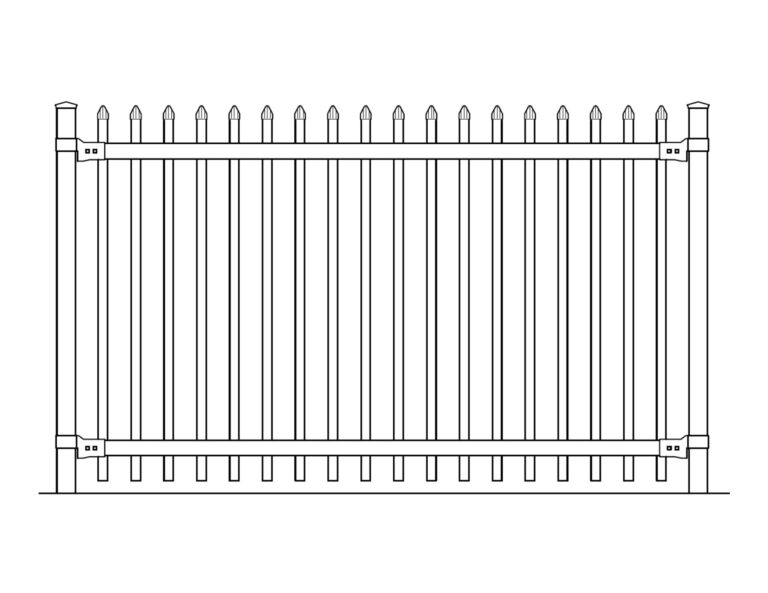

Longhorn II 6700
Industrial 2 Rail with Pickets
From our Longhorn Industrial II Series, this classic two rail design has pickets extending above the top rail. Pickets are pinched or arrow top design.
Height
96″ Panels
3ft (36″)
4ft (48″)
5ft (60″)
6ft (72″)
69 1/2″ Panels
7ft (84″)
8ft (96″)
9ft (108″)
10ft (120″)
12ft (144″)
Weight
96″x36″ – 80 lbs
96″x48″ – 97 lbs
96″x60″ – 114 lbs
96″x72″ – 130 lbs
69 1/2″x84″ – 114 lbs
69 1/2″x96″ – 127 lbs
69 1/2″x108″ – 140 lbs
69 1/2″x120″ – 153 lbs
69 1/2″x144″ – 180 lbs
Specs
Pickets 3/4″ x 1 1/2″
Rails 1 1/2″ x 2 1/2″
Posts (3″x3″) setting centre to centre for:
- 3′ to 6′ height – 102 1/2″
- 7′ height and up – 76″
POSTS SOLD SEPARATELY
Files
- DWG-Call for drawing file
